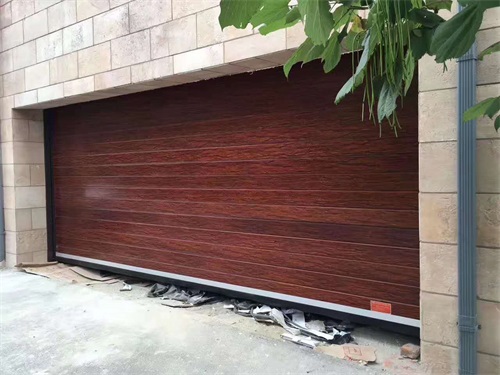

電動卷簾門在使用過程中,可能會出現以下需要調節的情況:

During use, electric roller shutter doors may encounter the following situations that require adjustment:

1. 運行速度過快或過慢

1. Running speed too fast or too slow

使用調速封裝體調節速度即可。優先摸手卡控制速度后再調肢瞎整。

Use the speed control package to adjust the speed. First touch the hand card to control the speed before adjusting the limbs for blind adjustment.

2. 升降拉伸不平衡

2. Uneven lifting and stretching

調節升降電機中心位置、拉伸系統張緊度以解決問題。

Adjust the center position of the lifting motor and the tension of the stretching system to solve the problem.

3. 停止位置不準

3. Inaccurate stop position

調節限位開關位置,設置正確的升降和拉開位置。

Adjust the position of the limit switch and set the correct lifting and pulling positions.

4. 噪聲大或振動

4. High noise or vibration

對電機和減速機進行調節以盡量噪音和振動。

Adjust the motor and reducer to minimize noise and vibration.

5. 不平順運行

5. Uneven operation

調節傳動鏈條張力,保持鏈條與齒輪匹配。使咐塵運轉過程更加平順。

Adjust the tension of the transmission chain to maintain the matching between the chain and the gear. Make the operation process of the charging dust smoother.

具體做法主要是:

The specific methods mainly include:

1) 檢查所有螺絲是否有松動,必要時擰緊。

1) Check if all screws are loose and tighten if necessary.

2) 檢查齒輪是否齊全、齒距協調。如果齒輪破損需要更換。

2) Check if the gears are complete and the tooth pitch is coordinated. If the gear is damaged, it needs to be replaced.

3) 檢查限位開關是否工作正常,需要的話進行調節。

3) Check if the limit switch is working properly and adjust it if necessary.

4) 使用提供的調節器調節速度和脈沖頻率。

4) Use the provided regulator to adjust the speed and pulse frequency.

5) 根據運作情況不斷微調電機和減速機以改善運行。

5) Continuously fine tune the motor and reducer according to the operation situation to improve operation.

具體調節方法如下：

The specific adjustment method is as follows:

1、試機前應先松開限位機構上的鎖緊螺釘，用手拉動環形鏈條使門簾離地面1米左右。

1. Before testing the machine, the locking screw on the limit mechanism should be loosened first, and the circular chain should be pulled by hand to keep the door curtain about 1 meter above the ground.

2、先試“上”、“?！薄ⅰ跋隆卑存I，觀察卷門升、停、降各功能是否靈敏可靠。

2. Try the "up", "stop", and "down" buttons first, and observe whether the functions of the rolling door up, stop, and down are sensitive and reliable.

3、若正常即可將門簾上升或下降到確定的位置，旋轉限位螺套，調整碰微動開關滾輪，聽到“滴答”聲后，擰緊鎖緊螺釘。

3. If it is normal, you can raise or lower the door curtain to the designated position, rotate the limit screw, adjust it to touch the micro switch roller, and when you hear a ticking sound, tighten the locking screw.

4、反復調試，當限位達到位置時，將鎖緊螺釘用力旋緊即可。

4. After repeated debugging, when the limit reaches the optimal position, tighten the locking screw firmly.
